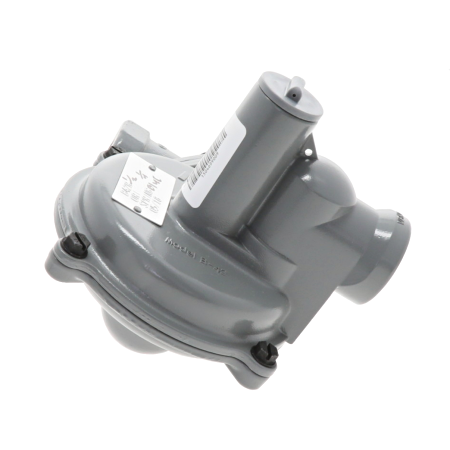

Actaris B42R-1/2 Gas Regulator 1/2" with Internal Relief Valve 1/2x9/16" Orifice 6-16" W.C.

Actaris B42R-1/2 Gas Regulator 1/2" with Internal Relief Valve 1/2x9/16" Orifice 6-16" W.C.
Images for general purposes only. Actual may be different than depicted.

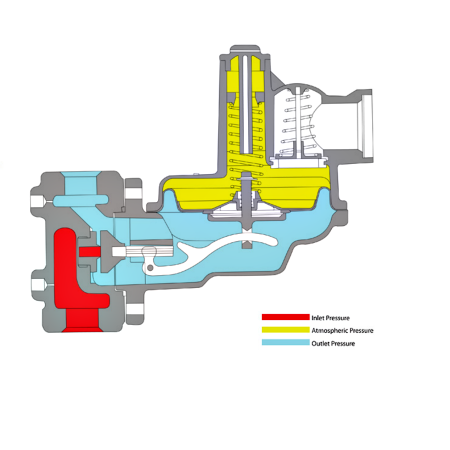

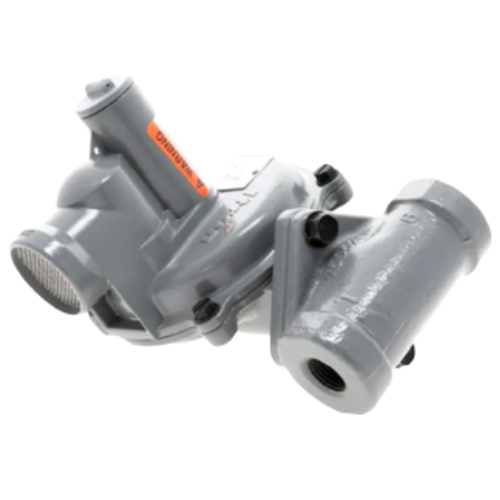

Actaris B42R-1/2 Gas Regulator 1/2" with Internal Relief Valve 1/2x9/16" Orifice 6-16" W.C. Actaris B42R Gas Regulator with Internal Relief Valve Back View Actaris B42 Gas Regulator Schematic Operation

Actaris B42R-1/2 Gas Regulator 1/2" with Internal Relief Valve 1/2x9/16" Orifice 6-16" W.C.

SKU: B42R-1/2
In Stock 13
Rating:
$110.01 /ea
0
$0.00
0
$0.00
0
 Actaris B42 Series Regulator

Actaris B42 Series is a self-operated regulator with a 1-inch internal relief option (B42R) and spring-loaded. It is mainly used for gas pressure reduction on typical domestic and light commercial. The B42 Series regulator consists of an interchangeable orifice, fiberglass reinforced polyethylene seal cap with integral relief valve stop, field interchangeable adjustment spring, Buna-N valve seat, Delrin® vent valve with Buna-N seat, spring-loaded internal relief valve assembly and diaphragm with o-ring seal.

The Actaris B42R-1/2 Gas Regulator has 1/2-inch pipe size, orifice size of 1/2" x 9/16", Dark Green spring color and a spring range of 6-16" WC.
Spring Range 6-16" WC
Orifice Size 1/2" x 9/16"
Pipe Size 1/2"

Following are the Attached files for this product:

Actaris B42R Gas Regulator with IRV Technical Datasheet
