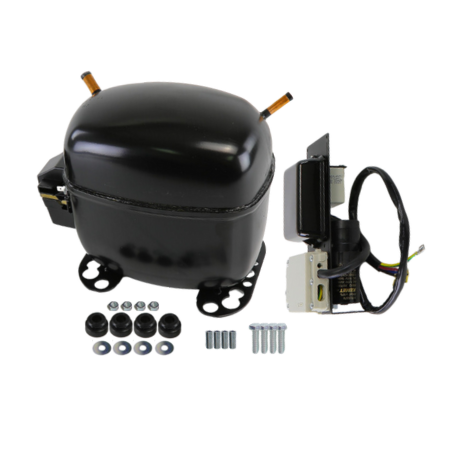

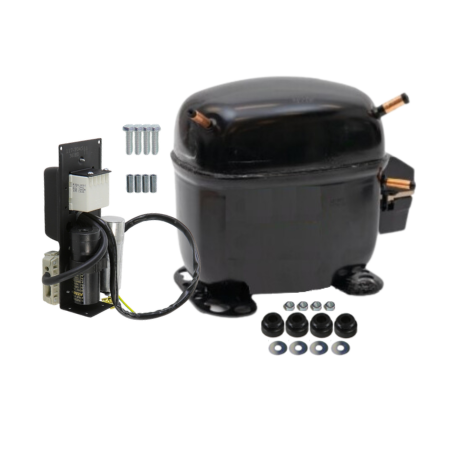

The Danfoss 195B0464 (SC18CLX.2-1) is a single-phase hermetic reciprocating compressor that operates at 3/4 HP, 115V, and 60 Hz power supply. It is a complete kit with all the necessary electrical and mounting accessories. UL Recognized.
This compressor features a 1/4" discharge and 3/8" suction, which facilitates the movement of R404A and R507 refrigerants, delivering 3,656 BTU based on ASHRAE conditions at -10/130°F ambient temperature.
The 195B0464 is a direct replacement for 104L2198HS. Suitable for low back-pressure applications such as ice machines, bottle coolers, vending machines, and food service or refrigeration equipment.
It is equivalent to the following brand and model numbers:
| Frequency | 60 Hz |
|---|---|
| Voltage | 115V |
| Number of Phase | Single-Phase |
| Refrigerant | R404A/R507 |
| Application | Low Back Pressure |
| Horsepower | 3/4Hp |
| Capacity | 3656 |
| Suction Size | 3/8" ID |
| Discharge Size | 1/4" ID |
| Oil Type | Polyolester (POE) |
Download Product Information:
