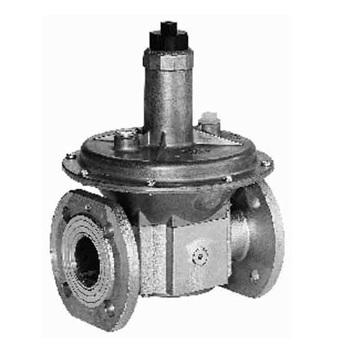

The DUNGS FRS 5.../10 pressure regulator is a spring-loaded pressure regulator with adjustable setpoint spring. Internal sensor for regulating output pressure. - Input pressures up to 7 PSI (CSA to 5 PSI) - High flow rate - Sturdy, precise and sensitive regulation of regulator output pressure - Lock-up Type Regulator - Vent limiter; approved as a vent-less regulator by some authorities having jurisdiction. (Review applicable codes for vent line requirements) - DIN PN16 Flange connections
The DUNGS FRS 5.../10 pressure regulator is recommended for industrial and commercial heating applications and is suitable for natural gas, propane, butane, air and other inert gases. Aluminum body; Two upstream and downstream taps; one tap on top; Refer to selection guide for technical specifics, flow and pressure drop. Refer to spring guide for correct output pressure.
|Maximum Operating Pressure||5 PSI (360 mbar) CSA|
|Input Pressure Range||2 to 200 in. W.C (5 mbar to 500 mbar)|
|Output Pressure Range||1 to 80 in. W.C (2.5 mbar to 150 mbar); adjustable with different springs|
|Ambient Temperature Rating||+5F to +160F (-15C to +70C)|
Following are the Attached files for this product:
