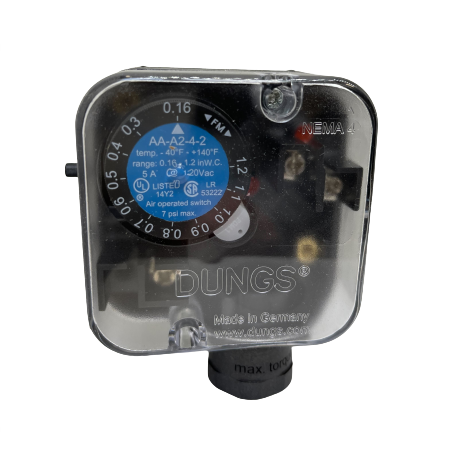

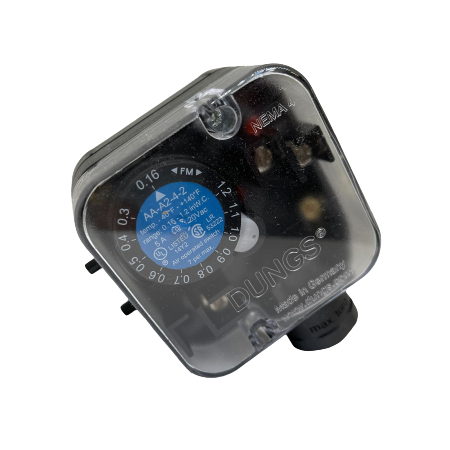

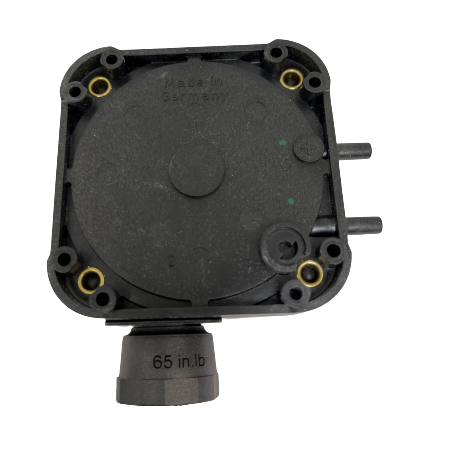

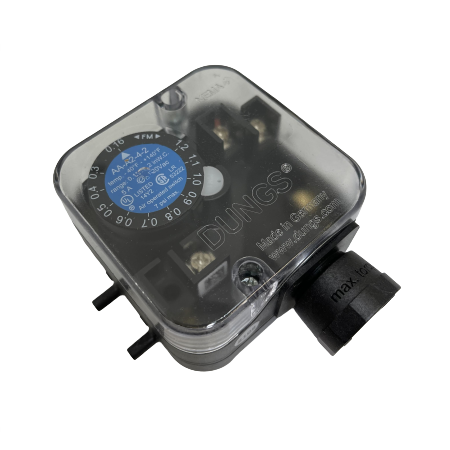

The 217-060A (AA-A2-4-2) is an air pressure switch that has a 0.16" to 1.2" W.C. pressure range with an SPDT switching action. It is field adjustable and features a hose connection type. UL-recognized, CSA-certified, and FM-approved.
The differential pressure switch is designed to monitor firing, ventilation, and air conditioning applications such as air and non-aggressive gases. The switch is ideal for making and breaking a circuit in response to changes in medium pressure relative to the setpoint.
| Model No. | Description |
| 228-732 | Replacement cover |
| 230-301 | Mounting Plate |
| 231-772 | Orange 120 VAC Light Mounting Set |
| 244-156 | Neon Replacement Light for GAO/GMH/GML |
| 231-774 | 24 VDC/VAC Light Mounting Set |
| 220-566 | Replacement Conduit Adapter PG11 |
| 240-671 | Replacement Conduit Adapter M20 |
| 210-318 | Female Plug DIN Connector |
| 219-659 | Male Plug for DIN Connector |
| Ambient Temperature Rating | -40F to 140F (-40C to 60C) |
|---|---|
| Enclosure Rating | NEMA Type 4 |
| Max Operating Pressure | 7 PSI (500 mbar) |
| Pressure Connection | 5/32" (4.6mm) Hose |
| Setting Range | 0.16 - 1.20 W.C |
| Switching Hysteresis | ≤ 0.12 W.C |
| Installation | Multipoised |
| Housing/Switch Material | Polycarbonate |
| Diaphragm Material | NBR-based rubber |
| Switching Contact | Silver |
Download Product Information:
By Kim
from
Yes, I would recommend this product to a friend or co-worker
good fit
By John
from
Yes, I would recommend this product to a friend or co-worker
I use this item in certain models of conveyorized pizza ovens as a blower motor safety switch. The switch does what it's supposed to do and, based on the ages of the ones I'm replacing, has a long life in harsh conditions. It's no where near the least expensive alternative as a safety switch, but it is by far the best and most versatile of the options I've encountered.
