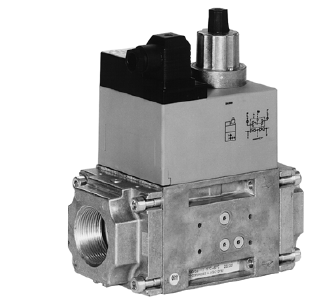

The Karl Dungs 224-842 Dual Modular Valve DMV-D 701/602 is 120 VAC consists of two normally closed gas safety shut off valves combined in one housing. The valves can be wired independently or in parallel. Both valves are fast opening and fast closing and on Valve 2 the flow is adjustable.
Suitable for applications in commercial and industrial combustion heat processing that require two valves and operate with either natural gas, propane, butane, air, and other inert gases as the fuel source.
Available in 24 Volt options:
This gas valve is UL Recognized, CSA Certified and FM Approved.
| Maximum Operating Pressure | PSI (500 mbar) UL, FM, |
|---|---|
| Enclosure Rating | NEMA Type 12 |
| Electrical Connection | DIN connector with 3/4” NPT conduit adapter |
| Operating Time | 100 % duty cycle |
| Ambient Temperature Rating | -40 °F to +150 °F (-40 °C to +65 °C) |
Download Product Information:
Karl Dungs Dual Modular Valve Series 602 User Manual
Karl Dungs Dual Modular Valve Series 602 Technical Datasheet
