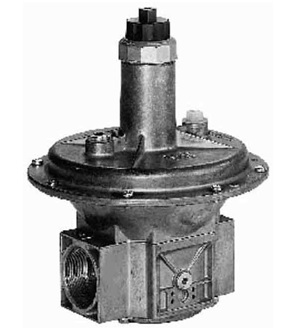

Dungs 229-595 Stand Alone Threaded Pressure Regulator FRS 705/6 1/2" NPT 1" to 80" WC

Dungs 229-595 Stand Alone Threaded Pressure Regulator FRS 705/6 1/2" NPT 1" to 80" WC
Images for general purposes only. Actual may be different than depicted.
Dungs 229-595 Stand Alone Threaded Pressure Regulator FRS 705/6 1/2" NPT 1" to 80" WC

Dungs 229-595 Stand Alone Threaded Pressure Regulator FRS 705/6 1/2" NPT 1" to 80" WC

SKU: 229595
Usually Ships from Stock
Rating:
$219.63 /ea
0
$0.00
0
$0.00
0

The DUNGS FRS 7../6 pressure regulator is a spring-loaded pressure regulator with adjustable setpoint spring. Internal sensor for regulating output pressure. - Input pressures up to 7 PSI (CSA to 5 PSI) - High flow rate - Sturdy, precise and sensitive regulation of regulator output pressure - Lock-up Type Regulator - Vent limiter; approved as a vent-less regulator by some authorities having jurisdiction. (Review applicable codes for vent line requirements)

Application:

The DUNGS FRS 7../6 pressure regulator is recommended for industrial and commercial heating applications and is suitable for natural gas, propane, butane, air and other inert gases. Aluminum body; Two upstream and downstream taps; one tap on top; optional external feedback connection; Refer to selection guide for technical specifics, flow and pressure drop. Refer to spring guide for correct output pressure.

Maximum Operating Pressure 7 PSI (500 mbar) / CSA 5 PSIG
Input Pressure Range 2 to 200 in. W.C (5 mbar to 500 mbar)
Output Pressure Range 1 to 80 in. W.C (2.5 mbar to 200 mbar); adjustable with different springs
