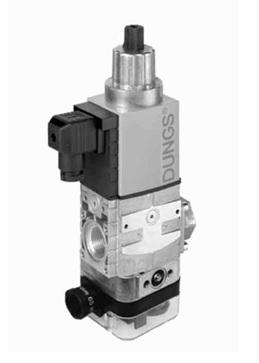

The DUNGS SV and the SV-DLE are electrically operated, normally closed, automatic shutoff valves for gas burning equipment. The SV & SV-DLE /614 Incorporate overtravel and a proof of closure switch.
Application
The SV and SV-DLE are recommended for industrial and commercial heating applications that require one or two automatic shutoff valves in series with proof of closure. The SV and SV-DLE safety shutoff valves are suitable for natural gas, propane, butane, air and other inert gases.
Conduit Adapter (240671) and DIN connector (210319) must be ordered and priced separately.
| Maximum Operating Pressure | 10 PSI (700 mbar) |
|---|---|
| Electrical Ratings | 120 Vac 50 - 60 Hz |
| Enclosure Rating | NEMA Type 4 - Mounted upright only |
| Electrical Connection | DIN connector with 1/2" NPT conduit adaptor |
| Ambient Temperature Rating | -40 °F to +150 °F (-40 °C to +65 °C) |
