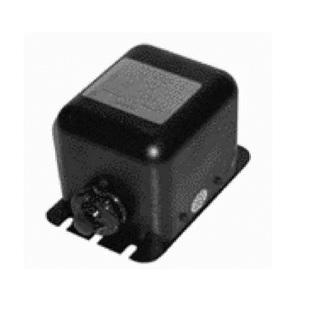

The Karl Dungs 48994 ignition transformer is a CSA and UL listed device that is designed with functionality and safety in mind. The transfer is designed for both industrial and commercial heat process and HVAC applications that consist of a gas burner. The Dungs transformer is used to ignite a spark generate by the 6000 VAV input that commences the burner ignition process.
Designed to adhere to many safety codes, the NEMA 1 internally grounded transformer is built to last and is a single pole electrode type unit. The unit is equipped with leads with 1/2” opening for a locknut to secure.
| Key Technical Parameters | |
| Electrical Input Rating | 240 VAC / 50 Hz |
| Secondary Voltage | 6000 VAC |
| Amperage Operation | 1.5 A input on the primary Inrush current for first 250 milliseconds (1) 8 A on first start (new out of the box) (2) 3 A on every start thereafter |
| Ambient & Surface Temperature Rating | 5°F -- 110°F (-15°C -- 40°C) |
| NEMA Type | 1 |
| ANY Mounting Position | Horizontal - Vertical - Diagonal |
| Enclosure Ratings | NEMA Type 1 |
|---|---|
| Ambient Temperature Rating | +5F to +110F |
