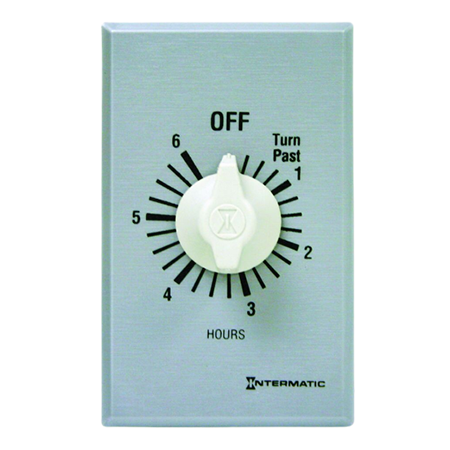

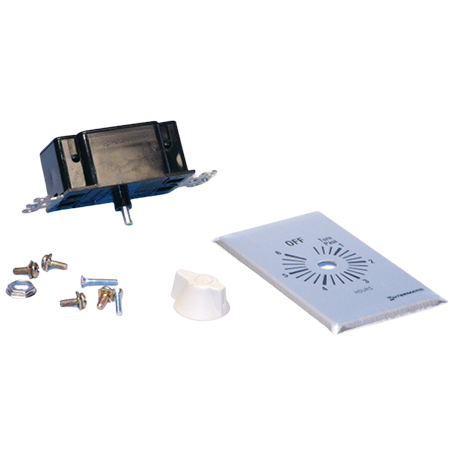

Intermatic FF46H 6Hour Dpst Spring Wound Timer

Intermatic FF46H 6Hour Dpst Spring Wound Timer
Images for general purposes only. Actual may be different than depicted.
Intermatic FF46H 6Hour Dpst Spring Wound Timer

Intermatic FF46H 6Hour Dpst Spring Wound Timer

SKU: FF46H
Usually Ships 2 - 4 Days
Rating:
$74.40 /ea
0
$0.00
0
$0.00
0
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch. The Intermatic FF46H 6-hour DPST spring wound timer does not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.  A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.
Operating Voltage 125-277 VAC, 60 Hz
Resistive 20 A, 125 VAC; 10 A, 250/277 VAC
Incandescent 7 A, 125 VAC
Motor 1 HP, 125 VAC - 2 HP, 250 VAC
Operating Temperature 32º F to 104º F (0º C to 40º C)

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Do you sell 30 amp, 125 volts, 50-60 Hz, DPST spring wound timer(s)?
Asked on Jan 05, 2019 by Ronald from New Hampshire, USA
1 Answers

Have an answer? Click Here

A:
Unfortunately we currently do not have any DPST timers that are rated for 30 amps service.
Replied on Jan 07, 2019 by Ori from Industrial Stores

Q:
Is this a 30 amp dpst 6 hour spring timer?
Asked on Jan 04, 2019 by Ronald from New Hampsire, USA
1 Answers

Have an answer? Click Here

A:
Depending on the voltage the listed ratings vary.  The following are the ratings:
  • 20 Amp, 125 VAC, 50/60 Hz
  • 10 Amp, 250 VAC, 50/60 Hz
  • 10 Amp, 277 VAC, 50/60 Hz
Please see the detailed information in the Technical Data Tab.
Replied on Jan 04, 2019 by Ori from Industrial Stores
