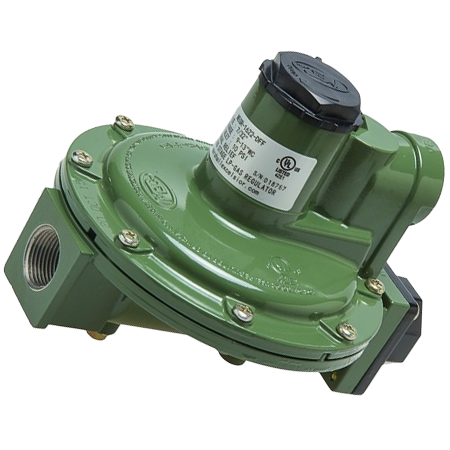

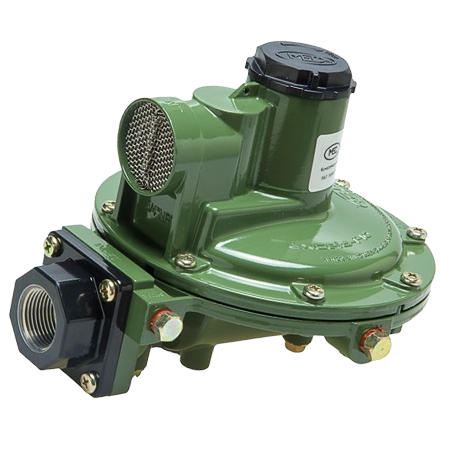

The MEGR-1622-DFF Excela-Flo second-stage straight regulator is a high-capacity regulator with 10 PSIG maximum inlet pressure, 1,300,000 BTU/H LPG capacity, and 9-13 inches W.C. outlet adjustment range. It has a 3/4" x 3/4" FNPT inlet and outlet connection size with a green powder-coated interior & exterior finish. The unit is UL-listed.
The second-stage regulator is ideal for reducing outlet pressures from first-stage regulators, typically at 10 PSI, to 11” WC in domestic applications. The full-size regulator provides double failure overpressure protection with no more than 2 PSI downstream pressures. It has a stainless steel inlet filter that prevents debris from entering the system, ensuring reliable operation. The regulator also includes an E-Z grip screen over the inlet and standard pressure taps.
The MEGR-1622-DFF is easy to install with its standard 3-1/2” center mounting holes and heavy-duty wrench flats for secure handling. It also has a large 3/4” FNPT-tapped drip lip vent that prevents blockage.
| Maximum Inlet Pressure | 10 PSIG |
|---|---|
| Orifice Size | 7/32" |
| Relief Type | Internal Relief - Spring Loaded |
| Pressure Taps | #54 Orifice - 1/8" FNPT Plugged (2) |
| Interior and Exterior Finish | Green Powder Coat |
| Bonnet / Body Material | Die Cast Aluminum |
| Seat Material | Fluorocarbon (FKM) |
| Relief Travel Stop | Molded In Adjustment Cap - Black |
| Mounting Holes | Standard 3-1/2” Center |
| Approval | UL-listed |
