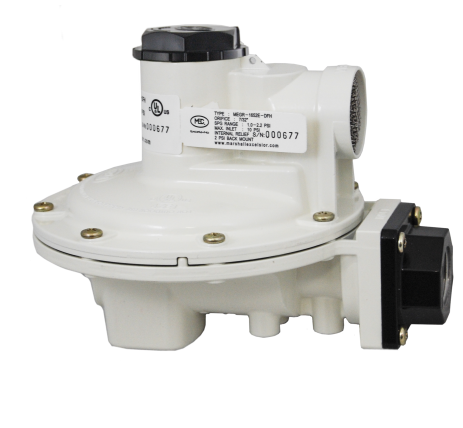

Marshall Excelsior MEGR-1652E-DFH Excela-Flo 2PSI Regulator 3/4" x 3/4" with Back Mount

Marshall Excelsior MEGR-1652E-DFH Excela-Flo 2PSI Regulator 3/4" x 3/4" with Back Mount
Images for general purposes only. Actual may be different than depicted.
Marshall Excelsior MEGR-1652E-DFH Excela-Flo 2PSI Regulator 3/4" x 3/4" with Back Mount

Marshall Excelsior MEGR-1652E-DFH Excela-Flo 2PSI Regulator 3/4" x 3/4" with Back Mount

SKU: MEGR-1625E-DFH
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Days
Usually Ships 2 - 4 Days
$52.38     /ea
Usually Ships 2 - 4 Days

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge*

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge

0
$0.00
0
$0.00
0
MEGR-1625E-DFH
Offers a full size high capacity molded lip fabric reinforced diaphragm, stainless steel internal components, fluorocarbon (FKM) seat discs, precision machined aluminum orifices, and an adjustment range from 1-2.2 PSI (factory set @ 2 PSI) providing superior downstream regulation and maximum corrosion resistance against weather or contaminated gas. Offers all of the same features as the MEGR-1622E Series but with a rear discharge back mount outlet for convenient wall mount applications. Type: 2 PSI Max. Inlet Pressure: 10 PSI Exterior Finish: Green Powder Coat Orifice Size: 7/32” Seat Material: Fluorocarbon (FKM) Diaphragm: Fabric Reinforced (NBR) / Molded Lip O-Ring Bonnet/Body Seal Relief Type: Internal Relief - Spring Loaded Bonnet / Body Material: Die Cast Aluminum Listings: CULUS / UL 144 Mounting Holes: Standard 3-1/2” Center Pressure Taps: #54 Orifice 1/8” FNPT Plugged (2)   Relief Travel Stop: Molded in Adjustment Cap - White
