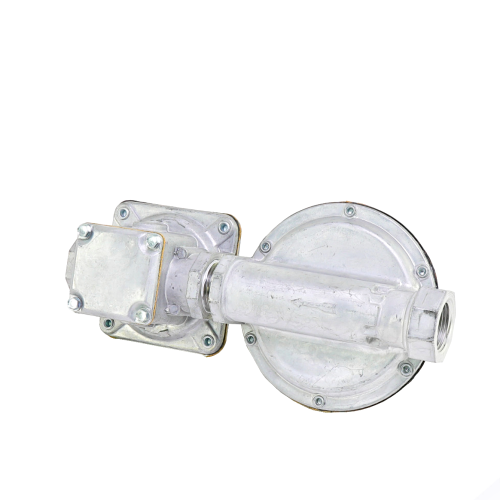

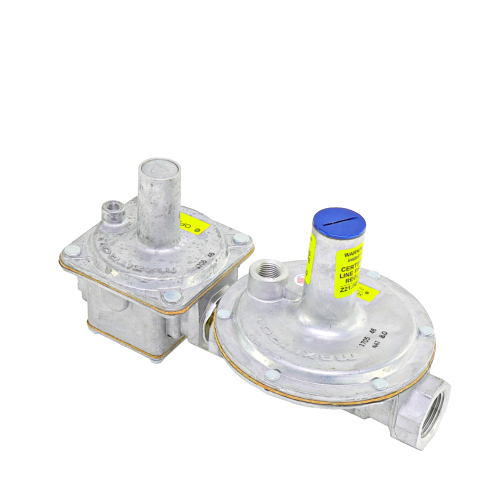

Maxitrol 325-5L600-1 Lever Acting Design Line Regulator 1"

Maxitrol 325-5L600-1 Lever Acting Design Line Regulator 1"
Images for general purposes only. Actual may be different than depicted.
Maxitrol 325-5L600-1 Lever Acting Design Line Regulator 1" Maxitrol 325-5L600-1 Line Pressure 1'' 5 PSI Gas Regulator

Maxitrol 325-5L600-1 Lever Acting Design Line Regulator 1"

SKU: 325-5L600-1
In Stock 18
Rating:
$167.57 /ea
Qty of 9 - $159.26 /ea
Qty of 18 - $150.95 /ea
0
$0.00
0
$0.00
0

Maxitrol's 325 Series pounds to inches regulators are for use on residential, commercial and industrial applications. The 325 Series features a high leverage valve linkage assembly to deliver positive dead-end lock-up.  The regulators are capable of precise control from full flow down to pilot flow.



Specifications:

  • Pipe Sizes: 3/8” to 2” threaded connections with NPT or ISO7-1 threads.
  • Housing Material: 325-3, 325-5, 325-7A, 325-9: aluminum.
  • Mounting: Suitable for multi-positional mounting. If ball check vent limiting device is installed, mount in an upright position only.
    NOTE: All Maxitrol gas pressure regulators should be installed and operated in accordance with Maxitrol Safety Warning Instructions.
  • Certifications: 325-3, 325-5: ANSI Z21.18/CSA 6.3 Gas Appliance Pressure Regulators.
  • Gas Types: Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.
  • Maximum Inlet Pressure: CSA Certified: 325-3, 325-5: 2 psi (13.8 kPa), 5 psi (34.5 kPa) Maxitrol Tested: 325-3, 325-5, 325-7A, 325-9: 10 psi (69 kPa) With Vent Limiter 12A09, 12A39, or 12A49 Installed: 325-3, 325-5, 325-7A, 325-9: 5 psi (34.5 kPa) - Natural, 2 psi (13.8 kPa) - LP
  • Emergency Exposure Limits: 65 psi (450 kPa) (inlet side only)
  • Maximum Individual Load: Largest single appliance served by the regulator: 325-3: 100,000 Btu/h; 325-5: 325,000 Btu/h; 325-7A: 1,250,000 Btu/h, 325-9: 2,250,000 Btu/h
  • Capacity: Total load of multiple appliances combined: 325-3: 150,000 Btu/h; 325-5: 325,000 Btu/h; 325-7A: 1,250,000 Btu/h; 325-9: 2,250,000 Btu/h
    NOTE: Capacities are used to determine the maximum multiple appliance load. The largest single appliance served by the regulator should not exceed the maximum individual load specified above.
  • Ambient Temperature Ranges: -40 to 205°F (-40 to 96°C)
  • Minimum Regulation: Suitable for pilot flow applications. (Circle P) (0.15 CFH NG), None (1.5 CFH NG).
    Imblue Technology™ 325-3, 325-5, 325-7A, 325-9 models may be ordered with Imblue Technology™. Imblue Technology™ increases corrosion resistance and provides extra protection against the elements for regulators used in outdoor applications. Add suffix letter “B” to model number when ordering.
Pipe Size 1''
Housing Material Aluminum
Maximum Inlet Pressure 1 psi (7 kPa)
Maximum Individual Load Capacity w/ OPD 600 attached 465,000 Btu/h
Ambient Temperature Range -40 to 205°F (-40 to 96°C)
