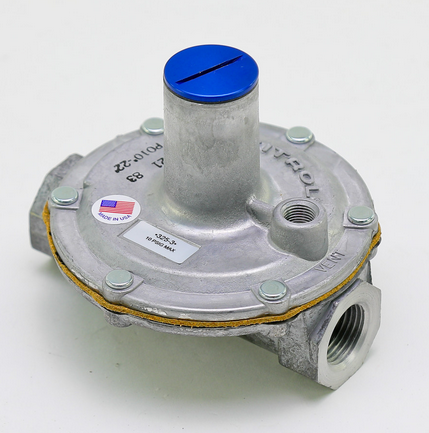

Maxitrol 325-3-1/2-RED Lever Acting Design Regulator for Appliance Main Burner 1/2" 10 PSI 10" to 22" W.C.

Maxitrol 325-3-1/2-RED Lever Acting Design Regulator for Appliance Main Burner 1/2" 10 PSI 10" to 22" W.C.
Images for general purposes only. Actual may be different than depicted.
Maxitrol 325-3-1/2-RED Lever Acting Design Regulator for Appliance Main Burner 1/2" 10 PSI 10" to 22" W.C.

Maxitrol 325-3-1/2-RED Lever Acting Design Regulator for Appliance Main Burner 1/2" 10 PSI 10" to 22" W.C.

SKU: 325-3-1/2-RED
In Stock 2
Rating:
$32.04 /ea
0
$0.00
0
$0.00
0

Maxitrol’s 325 Series pounds to inches regulators are for use on residential, commercial, and industrial applications. The 325 Series features a high leverage valve linkage assembly to deliver positive dead-end lockup. The regulators are capable of precise control from full flow down to pilot flow.

Specifications:

  • Pipe Sizes: 3/8” to 2” threaded connections with NPT or ISO7-1 threads.

  • Housing Material: 325-3, 325-5, 325-7A, 325-9: aluminum.

  • Mounting: Suitable for multi-positional mounting. If ball check vent limiting device is installed, mount in an upright position only.
    NOTE: All Maxitrol gas pressure regulators should be installed and operated in accordancewith Maxitrol Safety Warning Instructions (see GPR_MI_EN.ES or GPR_CSA_MI_EN.FR)

  • Certifications: 325-3, 325-5: ANSI Z21.18/CSA 6.3 Gas Appliance Pressure Regulators.

  • Gas Types: Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.

  • Maximum Inlet Pressure: CSA Certified: 325-3, 325-5: 2 psi (13.8 kPa), 5 psi (34.5 kPa) Maxitrol Tested: 325-3, 325-5, 325-7A, 325-9: 10 psi (69 kPa) With Vent Limiter 12A09, 12A39, or 12A49 Installed: 325-3, 325-5, 325-7A, 325-9: 5 psi (34.5 kPa) - Natural, 2 psi (13.8 kPa) - LP
  • Emergency Exposure Limits: 65 psi (450 kPa) (inlet side only)

  • Maximum Individual Load: Largest single appliance served by the regulator: 325-3: 100,000 Btu/h; 325-5: 325,000 Btu/h; 325-7A: 1,250,000 Btu/h, 325-9: 2,250,000 Btu/h

  • Capacity: Total load of multiple appliances combined: 325-3: 150,000 Btu/h; 325-5: 325,000 Btu/h; 325-7A: 1,250,000 Btu/h; 325-9: 2,250,000 Btu/h

  • Ambient Temperature Ranges: -40 to 205°F (-40 to 96°C)

  • Minimum Regulation: Suitable for pilot flow applications. (Circle P) (0.15 CFH NG), None (1.5 CFH NG).

  • Imblue Technology™: 325-3, 325-5, 325-7A, 325-9 models may be ordered with Imblue Technology™. This technology increases corrosion resistance and provides extra protection against the elements for regulators used in outdoor applications. Add suffix letter “B” to model number when ordering.

Following are the Attached files for this product:

Maxitrol 325-3-1/2-YELLOW Catalogue Page
