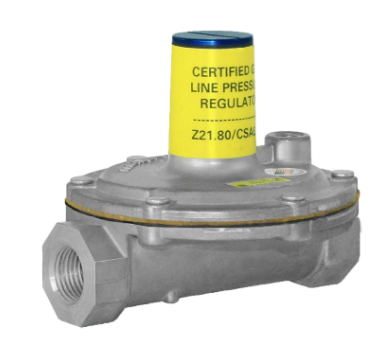

Maxitrol 325-3L-1/2 Lever Acting Design Line Regulator 1/2" 2 PSI 7-11" W.C. 140,000 BTU

Maxitrol 325-3L-1/2 Lever Acting Design Line Regulator 1/2" 2 PSI 7-11" W.C. 140,000 BTU
Images for general purposes only. Actual may be different than depicted.
Maxitrol 325-3L-1/2 Lever Acting Design Line Regulator 1/2" 2 PSI 7-11" W.C. 140,000 BTU

Maxitrol 325-3L-1/2 Lever Acting Design Line Regulator 1/2" 2 PSI 7-11" W.C. 140,000 BTU

SKU: 325-3L-1/2
In Stock 457
Rating:
$19.45 /ea
Qty of 15 - $18.18 /ea
Qty of 25 - $16.91 /ea
0
$0.00
0
$0.00
0

Maxitrol’s 325-L Series line pressure regulators are for 2 psi piping systems. 325 Series regulators are for use on residential, commercial, and industrial applications.The 325 Series features a high leverage linkage assembly to deliver positive dead-end lockup. The regulators are capable of precise regulating control from full flow down to pilot flow. When vented to the outdoors the 325 Series is suitable for multi-poise mounting. When using the vent limiting device, the regulator (325-3, 325-5A) must be mounted in a horizontal upright position. Install the regulator properly with gas flowing as indicated by the arrow on the casting.

FEATURES

  • Designed for multi-poise mounting
  • Self-aligning valve with lever action for dead end lockup
  • Durable, corrosion-resistant construction
  • High performance type for pounds to inches reduction
  • Available in six pipe sizes from 3/8" to 1-1/2"

BENEFITS

  • Ease of installation Longer life, less maintenance
  • May be used for both 2 psi and 5 psi corrugated stainless steel tubing (CSST) systems
  • Precise regulation from pilot flows to full regulator capacity
  • Meets many utility specifications
  • Gases: Natural, manufactured, mixed, liquified petroleum or LP gas-air mixture. 325-3: 3/8'' & 1/2'' NPT, ANSI Z21.18
  • Certified Appliance Regulator to 5-psi or Non-certified to 10-psi 325-5A: 1/2'' , 3/4'' & 1'' NPT, ANSI Z21.18
  • Certified Appliance Regulator to 5-psi or Non-certified to 10-psi 325-7: 1-1/4'' & 1-1/2'' NPT, Non-certified to 10-psi





Housing Material Aluminum
Ambient Temperature -40F to 205F (-40C to 96C)
Max Individual Load 140,000 Btu/hr
Max Multiple Load 250,000 Btu/hr
