Lever Acting Design for 2 psi Piping Systems

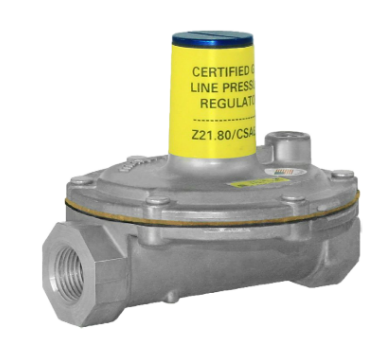

Maxitrol’s 325-L Series line pressure regulators are for 2 psi piping systems. 325 Series regulators are for use on residential, commercial, and industrial applications.
The 325 Series features a high leverage linkage assembly to deliver positive dead-end lockup. The regulators are capable of precise regulating control from full flow down to pilot flow.
When vented to the outdoors the 325 Series is suitable for multi-poise mounting. When using the vent limiting device, the regulator (325-3, 325-5A) must be mounted in a horizontal upright position. Install the regulator properly with gas flowing as indicated by the arrow on the casting.
