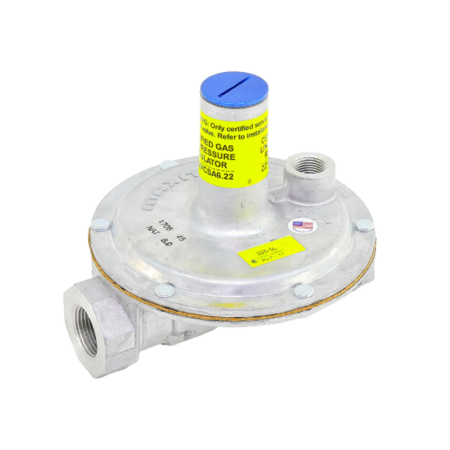

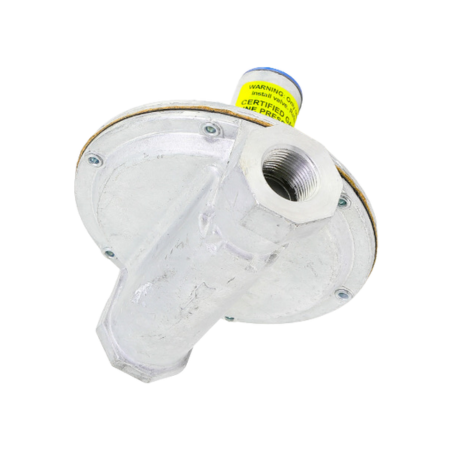

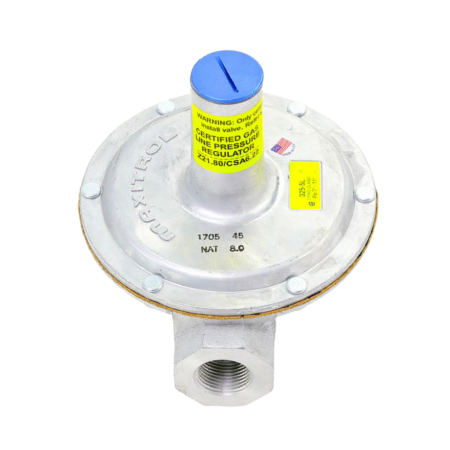

The Maxitrol 325-5L-3/4 is a lever-acting design line regulator with a 3/4" NPT inlet/outlet and a 3/8" vent connection. This device has a rugged aluminum die-casting housing and corrosion-resistant internal parts. It includes a 12A39 with vent limiter (for indoor no vent line). CSA Listed.
The line regulator has a high-leverage valve linkage that handles control from full flow down to pilot flow and delivers positive dead-end lock-up. This device also features a self-aligning valve and an adjustable 7-11" w.c. outlet pressure range.
The 325-5L Series is suitable for natural, manufactured, liquefied petroleum, mixed gases, and LP gas-air mixtures in residential, commercial, and industrial applications. Ideal for indoor installation in a horizontal mounting position.
| Housing Material | Aluminum |
|---|---|
| Maximum Multiple Load | 600,000 btu/hr |
| Inlet/Outlet Connection Size | 3/4" NPT |
| Maximum Inlet Pressure | 2 PSI |
| Outlet Pressure Range | 7-11" w.c. |
| Maximum Individual Load | 425,000 btu/hr |
| Approval | CSA Listed |
| Ambient Temperature Range | -40 to 96°C (-40 to 205°F) |
| Emergency Exposure Limits | 65 psi (inlet side only) |
| Vent Connection Size | 3/8" NPT |
Download Product Information:
Maxitrol 325-L Series Line Pressure Regulator Data Sheet
Maxitrol 325-L Series Line Pressure Regulator Installation Guide
