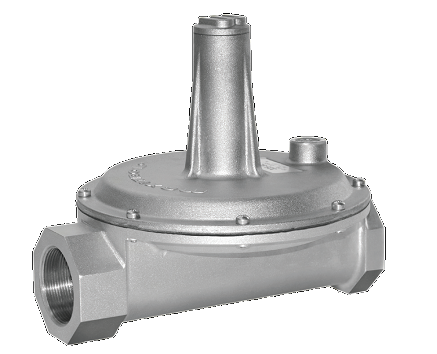

Maxitrol 325-9-2-12A49 Lever Acting Design Regulator for Appliance Main Burner with Vent Limiter Installed 2"

Maxitrol 325-9-2-12A49 Lever Acting Design Regulator for Appliance Main Burner with Vent Limiter Installed 2"
Images for general purposes only. Actual may be different than depicted.
Maxitrol 325-9-2-12A49 Lever Acting Design Regulator for Appliance Main Burner with Vent Limiter Installed 2"

Maxitrol 325-9-2-12A49 Lever Acting Design Regulator for Appliance Main Burner with Vent Limiter Installed 2"

SKU: 325-9-2-12A49
In Stock 24
Rating:
$363.89 /ea
Qty of 4 - $337.65 /ea
Qty of 8 - $311.42 /ea
0
$0.00
0
$0.00
0


325 SERIES

Lever Acting Design

Maxitrol’s 325 Series pounds to inches regulators are for use on residential, commercial, and industrial applications. The 325 Series features a high leverage valve linkage assembly to deliver positive dead-end lockup. The regulators are capable of precise control from full flow down to pilot flow.

Specifications

Pipe Sizes: 3/8” to 2” threaded connections with NPT or ISO7-1 threads.
Housing Material: 325-3, 325-5, 325-7A, 325-9: aluminum.
Mounting: Suitable for multi-positional mounting. If ball check vent limiting device is installed, mount in an upright position only.
NOTE: All Maxitrol gas pressure regulators should be installed and operated in accordance with Maxitrol Safety Warning Instructions.

Certifications: 325-3, 325-5: ANSI Z21.18/CSA 6.3 Gas Appliance Pressure Regulators.
Gas Types: Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.
Maximum Inlet Pressure: CSA Certified: 325-3, 325-5: 2 psi (13.8 kPa), 5 psi (34.5 kPa) Maxitrol Tested: 325-3, 325-5, 325-7A, 325-9: 10 psi (69 kPa) With Vent Limiter 12A09, 12A39, or 12A49 Installed: 325-3, 325-5, 325-7A, 325-9: 5 psi (34.5 kPa) - Natural, 2 psi (13.8 kPa) - LP
Emergency Exposure Limits: 65 psi (450 kPa) (inlet side only)
Maximum Individual Load: Largest single appliance served by the regulator: 325-3: 100,000 Btu/h; 325-5: 325,000 Btu/h; 325-7A: 1,250,000 Btu/h, 325-9: 2,250,000 Btu/h
Capacity: Total load of multiple appliances combined: 325-3: 150,000 Btu/h; 325-5: 325,000 Btu/h; 325-7A: 1,250,000 Btu/h; 325-9: 2,250,000 Btu/h
NOTE: Capacities are used to determine the maximum multiple appliance load. The largest single appliance served by the regulator should not exceed the maximum individual load specified above.

Ambient Temperature Ranges: -40 to 205°F (-40 to 96°C)
Minimum Regulation: Suitable for pilot flow applications. (Circle P) (0.15 CFH NG), None (1.5 CFH NG).
Imblue Technology™ 325-3, 325-5, 325-7A, 325-9 models may be ordered with Imblue Technology™. Imblue Technology™ increases corrosion resistance and provides extra protection against the elements for regulators used in outdoor applications. Add suffix letter “B” to model number when ordering.
