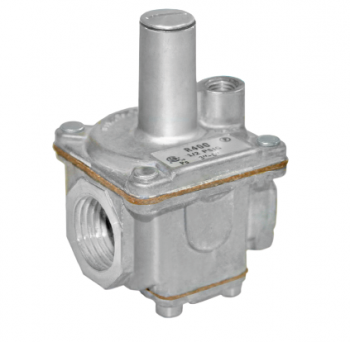

Maxitrol R500Z-1/2 Zero Governor Regulators 1/2" NPT

Maxitrol R500Z-1/2 Zero Governor Regulators 1/2" NPT
Images for general purposes only. Actual may be different than depicted.
Maxitrol R500Z-1/2 Zero Governor Regulators 1/2" NPT Maxitrol RZ Zero Governor Balanced Valve Design Gas Regulator

Maxitrol R500Z-1/2 Zero Governor Regulators 1/2" NPT

SKU: R500Z-1/2
In Stock 55
Rating:
$69.48 /ea
Qty of 15 - $64.47 /ea
Qty of 25 - $59.47 /ea
0
$0.00
0
$0.00
0

Maxitrol R500Z-1/2 Zero Governor Balanced Valve Design Gas Pressure Regulator is applicable for natural gas, manufactured, mixed gases, liquified petroleum gases, and LP gas-air mixtures. This model has a 1/2" x 1/2" NPT pipe connection and 1 psi (68 mbar) maximum inlet pressure.

The Maxitrol RZ Regulators balanced valve construction provides excellent performance and is suitable for air-gas mixing applications. They are used for flow control of burners, nozzle mixers, mixing tees, and proportional premixers. It can also be used for outlet pressures close to atmospheric, from slightly above to slightly below (-1.0” to 1.5” w.c.; -2.5 mbar to 3.75 mbar).

Note: The regulator should be mounted upright only.




Model Pressure Drop inches w.c. (mbar)
0.2
(0.50)
0.4
(1.00)
0.6
(1.5)
0.8
(2.0)
1.0
(2.5)
1.5
(3.7)
2.0
(5.0)
2.5
(6.2)
3.0
(7.5)
3.5
(8.7)
4.0
(10.0)
R500Z 163
(4.56)
231
(6.47)
283
(7.92)
327
(9.16)
366
(10.25)
447
(12.52)
516
(14.55)
577 (16.16) 635 (17.78) 685 (19.18) 730 (20.44)
Pipe Size 1/2" x 1/2"
Connection Type NPT
Maximum Inlet Pressure 1 psi (68 mbar)

Following are the Attached files for this product:

Maxitrol R500Z-1/2 Gas Pressure Regulator Technical Datasheet
