The Maxitrol RV20LSF-3L6-0005 is a Rubber Seat Poppet Gas Regulator with Integral Vent Limiting Orifice. Used to have precise control gas flow on main burners and perfect for main burner and pilot load applications.
RV20LSF-3L6-0005 regulator pipe size measures 3/8" x 3/8" NPT and has an integral vent limiting orifice with a 1/8" NPT tapping. The outlet pressure is nonadjustable and factory set at 3" W.C. Operating maximum inlet pressure is up to 1/2" PSI. Applicable to equipment that uses Natural Gas.

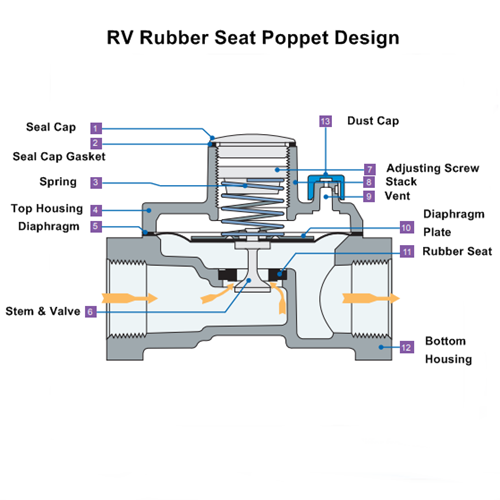

Maxitrol RV poppet regulators are suitable for home or commercial cooking appliances that use liquefied petroleum gases, LP gas-air mixture, manufactured, mixed gases, and natural gas. Provides efficient operating performance and they are safe to use with CSA certification. Made of aluminum die-casting material making the regulator durable. All RV poppet regulators except models with the "D" suffix can be installed in any position.
| Connection Size | 3/8" x 3/8" |
|---|---|
| Connection Type | NPT |
| Maximum Inlet Pressure | 1/2 PSI |
| Factory Set Outlet Pressure | 3 W.C |
| Pressure Drop @ 0.3” w.c. or (0.07 kPa) | 30,000 (0.85) Btu/h (m3 /h) |
| Main Burner Range of Regulation | 65,000 (1.84) Btu/h (m3 /h) |
| Main Burner & Pilot Range of Regulation | 50,000 (1.4) Btu/h (m3 /h) |
| Individual Load Fixed Orifice | 30,000 (0.85) Btu/h (m3 /h) |
| Housing Material | Aluminum Die Cast |
Download Product Information:
Maxitrol RV Series Rubber Seat Gas Regulator Technical Datasheet
By Mark
from
Yes, I would recommend this product to a friend or co-worker
Needed a new Gas regulator but the one i had to replace was obsolete. Found this one as a verified replacement part for my old worn out one. Ordered it, paid for it, received it, installed it. Works perfect. Enough said good job. Thanks. MS
