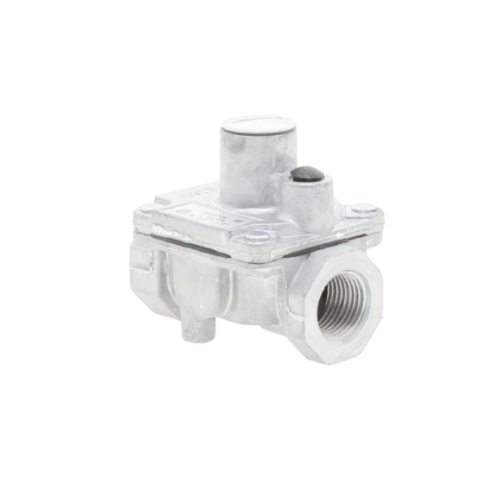

Maxitrol RV20VL-3/8 Poppet Style Gas Regulator has a pipe size of 3/8 x 3/8 inch NPT. The regulator's Maximum Inlet Pressure is 1/2 PSI and 3-5 inch W.C outlet pressure. This Rubber Seat Poppet design features Integral Vent Limiting Orifice.
These rubber seat poppet type regulators are designed primarily for main burner and pilot load applications where precise control of tiny flows is an essential operating requirement. CSA certified (.15 CFH).
Housings are of high strength aluminum die castings. All models, with the exception of ''D'' suffix models, have been tested for multi-poise mounting and may be installed in any plane or angle without restriction. Suitable for application in natural, manufactured, mixed gases, liquified petroleum gases, and LP gas-air mixture piping systems.
| Pipe Size | 3/8" x 3/8" |
|---|---|
| Pressure Drop @ 0.3” w.c. or (0.07 kPa) | 30,000 (0.85) |
| Swing Radius | 1.6" |
