Maxitrol RV48-1/2-13 Gas Regulator 1/2" 1/2 PSI Max Inlet Pressure 1-3" W.C. Outlet Pressure

Maxitrol RV48-1/2-13 Gas Regulator 1/2" 1/2 PSI Max Inlet  Pressure 1-3" W.C. Outlet Pressure
Images for general purposes only. Actual may be different than depicted.
Maxitrol RV48-1/2-13 Gas Regulator 1/2" 1/2 PSI Max Inlet  Pressure 1-3" W.C. Outlet Pressure

Maxitrol RV48-1/2-13 Gas Regulator 1/2" 1/2 PSI Max Inlet Pressure 1-3" W.C. Outlet Pressure

SKU: RV48-1/2-13
Usually Ships 2-3 Weeks
Rating:
$27.06 /ea
Qty of 15 - $25.72 /ea
Qty of 25 - $24.37 /ea
0
$0.00
0
$0.00
0

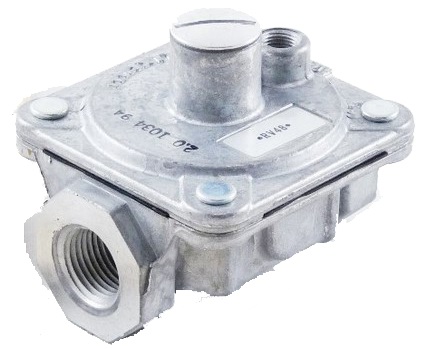

Maxitrol RV48 Gas Regulator

The RV48-1/2-13 is a rubber seat poppet gas regulator from Maxitrol. This is the 1/2" threaded version of the RV48, and it comes with a factory outlet pressure setting of 1" to 3" water column. This inlet pressure is a maximum of 1/2 PSI. This regulator is designed for cooking appliances and bbq grills, both residential and commercial, and also hearths and pilot lines.

Features:

  • Made from aluminum housing material
  • Suitable for multi-positional mounting, however it is recommended to mount in a upright position as other positions may result in slight pressure loss
  • ANSI Certification Z21.18
  • CSA Certification 6.3
  • Suitable for natural gas, manufactured gas, mixed gases, liquified petroleum gases, and LP gas-air mixtures
  • Emergency Exposure Limit of 2.5 PSI (17.2 kPa)
Connection 1/2"
Inlet Pressure 1/2 PSI
Outlet Pressure 1-3" W.C.
Ambient Temperature Range 32F to 225F (0C to 107C)

Following are the Attached files for this product:

Maxitrol RV48-1/2-13 Technical Sheet
