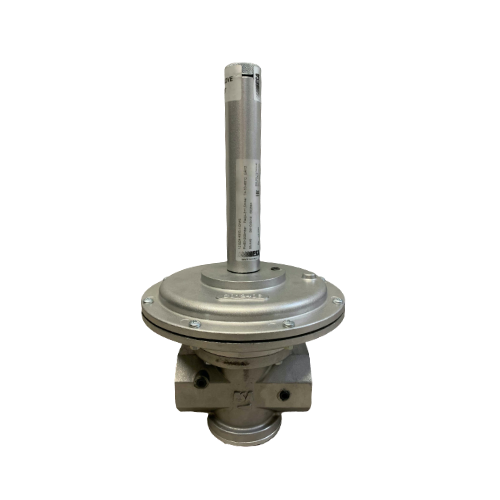

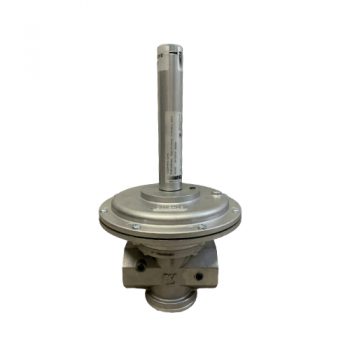

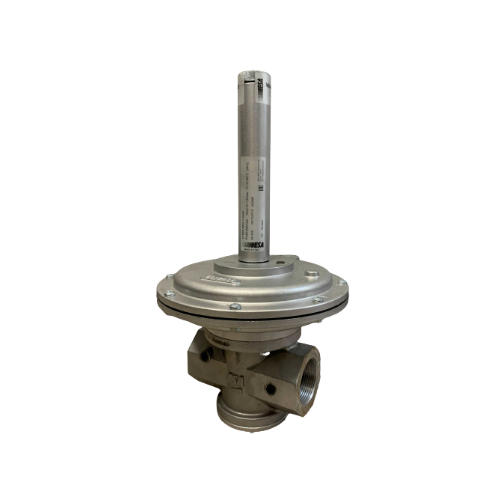

Pyronics 12-BZR-REG-II Zero Governor Pressure Regulator 1-1/2"

Name: Pyronics 12-BZR-REG-II Zero Governor Pressure Regulator 1-1/2"
Brand: ESA Pyronics International
SKU: 12-BZR-REG-II
Price: 829.65 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Pyronics 12-BZR-REG-II Zero Governor Pressure Regulator 1-1/2"

SKU: 12-BZR-REG-II

Brand:

Rating:

Quantity	Price	Stock
4 Usually Ships 2 - 4 Days	$829.65 /ea	4

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The ESA Pyronics E5102 12-BZR-REG-II is a 1-1/2" NPT zero gas regulator (governors). It is the new updated version and direct replacement to the older generation Pyronics 5101-12-BZR.

Suitable for applications requiring gas regulation on venturi and proportional type mixers, the 12-BZR provide reliable and accurate gas flow control. Outlet gas is supplied accurately through the regulator based on a pressure signal that is proportional to the actual combustion air pressure and restores the same pressure value on the gas line. They offer precise and reliable gas flow control on different types of combustion systems actuating diaphragms from positive and negative signals from positive pressure sources or from suction created through air gas mixers bodies in the combustion system.

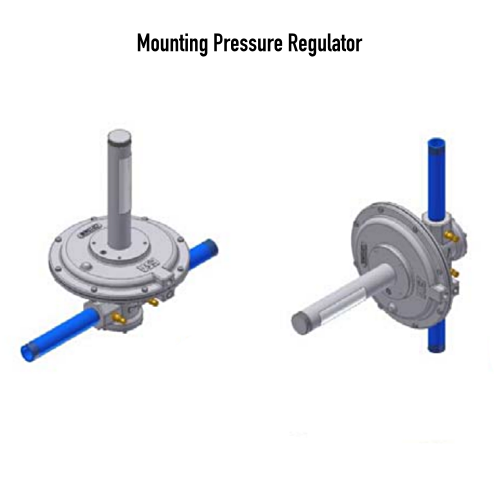

Made of GAlSi 9.1 cast Aluminum the valve body is rugged an suitable for harshest environments. The 12-BZR regulator has a 1 1/2” inlet and outlet threaded valve for threaded pipe connections and can be mounted vertical in an upright position with horizontal piping or horizontal with vertical piping.

Suitable for many combustion applications these Zero Regulators are often found as Zone Regulators on industrial bakery ovens operating with ribbon burners.

Minimum Air Signal	0.4 mbar (0.16" w.c.)
Maximum Differential Pressure	36 mbar (14" w.c.)
Flow Ratio	100 : 1
Working Temperature	-10°C - 60°C
Maximum Fluid Temperature	50° C
Nominal Working Pressure	80 - 200 mbar (1.1 - 2.9 PSI)
Maximum Working Pressure	200 mbar (2.9 PSI)
Gas Inlet/Outlet Size	1-1/2" NPT
Maximum Air Signal	70 mbar (1 PSI)
Mounting	Vertical / Horizontal

Download Product Information:

ESA Pyronics Zero Governor Pressure Regulator Technical Datasheet
