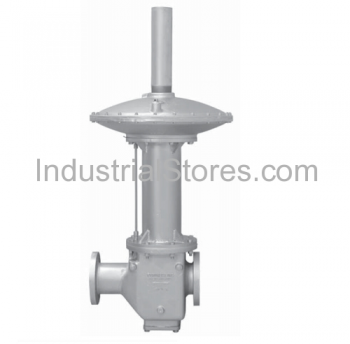

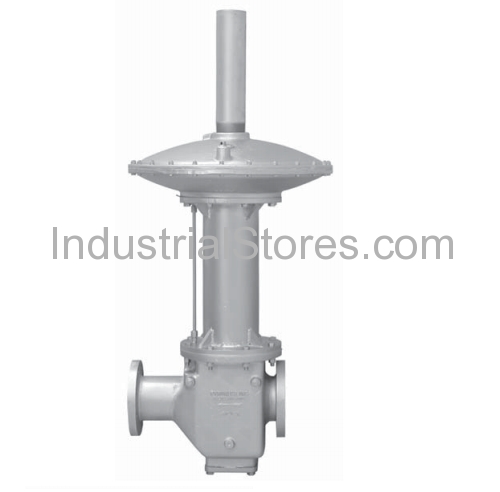

The SR-500 Series Pressure Reducing Regulator is designed for industrial furnaces and heating applications. These regulators will maintain a constant outlet pressure over a wide range of flows even if the inlet pressure varies. Standard construction is for clean fuel gases including Natural Gas, Propane, Butane and other Hydrocarbon fuels. Special construction is available for gases such as Coke Oven Gas. The SR-500 has a maximum operating temperature of 500°F. The standard design has internal compensation. For capacities greater than listed in the specification table the regulator can be supplied with external compensation.
Precision outlet pressure control
Wide flow range
Stainless steel valve
Balance valve design - holds outlet pressure constant with varying inlet pressures
Inlet pressures to 5 psig
Synthetic, reinforced diaphragms - good for most fuel gases
Springs color coded for identification
Maximum capacity must be limited to less than 200% of ratings below.
SCFH Gas Flow @ 14.0" W.C. Pressure Drop
MFD. 0.4 Sp. Gr.
NAT. 0.6 Sp. Gr.
AIR 1.0 Sp. Gr.
L.P. 1.5 Sp. Gr.
SPRING RANGES SR-500
Outlet Pressure Range
7" W.C. to 30" W.C.
Select spring for each regulator based on required system delivery pressure.
