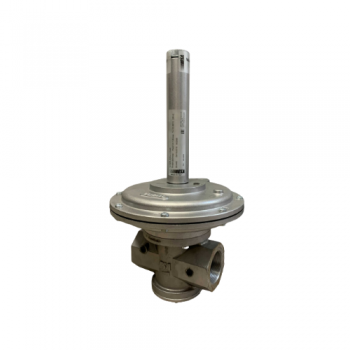

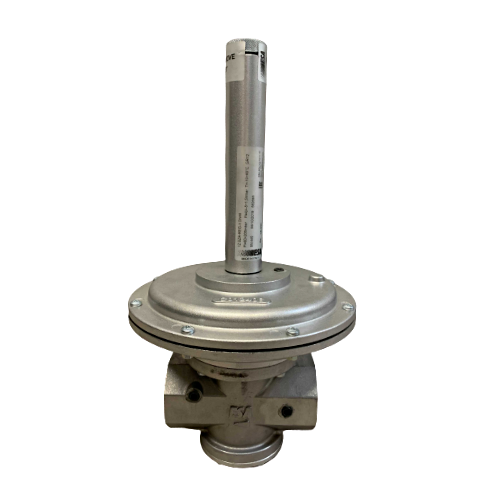

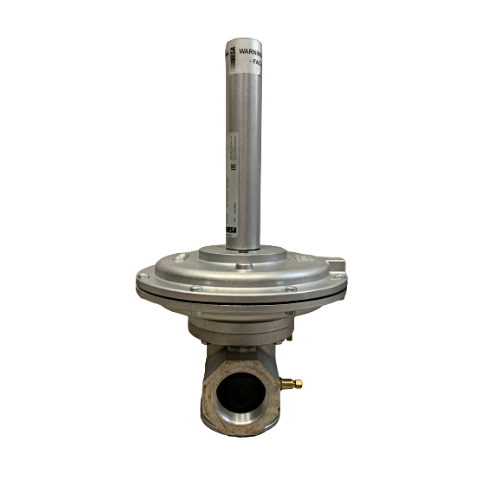

Pyronics 8-BZR-REG-II Zero Governor Pressure Regulator 1"

Name: Pyronics 8-BZR-REG-II Zero Governor Pressure Regulator 1"
Brand: ESA Pyronics International
SKU: 8-BZR-REG-II
Price: 717.84 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Pyronics 8-BZR-REG-II Zero Governor Pressure Regulator 1"

SKU: 8-BZR-REG-II

Tariff HS Code: 84179000

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 2 - 4 Days	$717.84 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

ESA Pyronics 8-BZR-REG-II Gas Pressure Regulator with 1” inlet and outlet valve.

This directly replaces older generation Pyronics 5101-8-BZR (part # 09001B2) regulators.

Used on proportional mixers, venturi mixers, and different types of burner feeding lines for gas regulation.

The BZR-REG-II is designed to regulate gas pressure and maintains a stable fuel/combustion agent ratio on burners and gas mixers. The regulators have two diaphragms: a balancing diaphragm separating the gas chamber inlet from the main diaphragm chamber and the main diaphragm that balances underlying chamber outlet pressure and the upper chamber’s pressure. The spring closes the valve and counterbalances the internal mobile parts' weight.

The BZR-REG-II provides excellent performance and preciseness in any type of combustion system. Best used to regulate gas flow on venturi and proportional mixers and any gas burner type feeding lines.

Maximum Differential Pressure	36 mbar
Flow Ratio	100:1
Maximum Fluid Temperature	50 C
Working Temperature	-10 C - 60 C
Nominal Working Pressure	80 - 200 mbar
Maximum Working Pressure	200 mbar
Gas Inlet/Outlet Size	3/4"
Maximum Air Signal	70 mbar
Minimum Air Signal	0.4 mbar

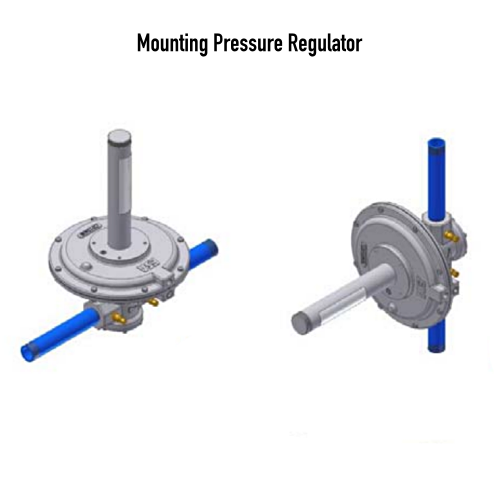

Mounting	Vertical / Horizontal

Download Product Information:

ESA Pyronics Zero Governor Pressure Regulator Technical Datasheet
