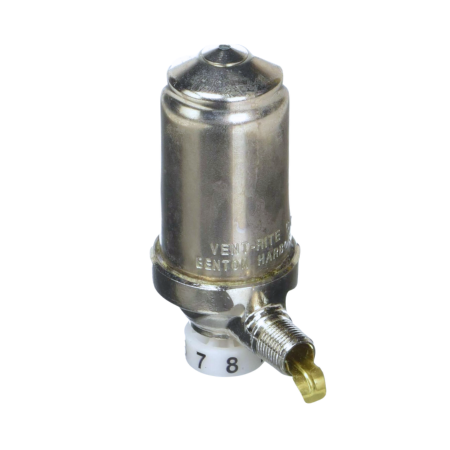

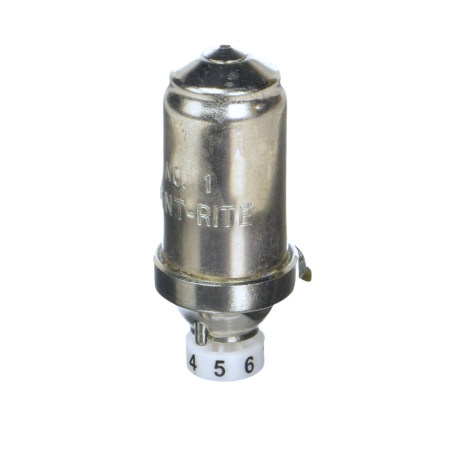

The Vent-Rite V-R1 is a #1 air vent valve with adjustable angle steam. It features a durable nickel-plated brass body with a 1/8" male threaded connection and operates at up to 3 psi.
This valve is equipped with a 3-1/4" vent height, a 3/32" vent port, and an adjustable dial with a range of 1 to 8, allowing precise control over venting performance.
Ideal for free-standing radiators, it is designed to be installed below the steam path, ensuring efficient air removal in steam heating systems and balanced steam distribution.
| Vent Height | 3-1/4" |
|---|---|
| Vent Port | 3/32” |
| Connection Type | Male Threaded |
| Connection Size | 1/8” |
| Operating Pressure Rating | 3 psi |
| Body Material | Nickel Plated Brass |
| Adjustment Range | 1 to 8 |
| Application | Free Standing Radiator |
| Port Type | Adjustable |
| Product Type | Air Vent Valve |
Download Product Information:
By alfred
from West Springfield MA
Yes, I would recommend this product to a friend or co-worker
they worked great and i will be ordering more in March
By Christine
from Quincy MA
Yes, I would recommend this product to a friend or co-worker
I've been searching for these valves for ages. I'm so glad I finally found them at a reasonable price. They arrived safe and sound, quickly, with no damage. Thanks so much!
By Jose
from
Yes, I would recommend this product to a friend or co-worker
The manufacturing quality is excellent; I've purchased at least two dozen so far and each has worked flawlessly. This was not the case with adjustable air vents from other manufactures. The adjusting mechanism is very easy to operate. This device simply operates well and is worth the price.
By Gabriella
from
Yes, I would recommend this product to a friend or co-worker
I bought 6 of these valves to replace my old ones on steam radiators in my new home. Easy install, and love the feature where you can open the valve from 1-8 and choose your air dispensing power. Thank you!
By Jose
from
Yes, I would recommend this product to a friend or co-worker
I manage a 30 unit building with 3 to 7 radiators in each unit. This is the only adjustable steam air vent that I've personally tried that really works. The build quality is also excellent.I've tried others that too often fail at fully trapping the air, and or have very inconsistent performance due to manufacturing defects. It's best to properly balance your steam distribution but if that proves too difficult, this is the best adjustable air vent on the market.
By David
from
Yes, I would recommend this product to a friend or co-worker
I'm a newbie to steam due to buying a 1925 house, and wanted to get the system optimized. Dan Holohan and my local plumber both said "replace those vents" and the adjustable helps tune the radiators for heat in the right places. I like that the numbers have a clear relationship to the aperture.
By George
from
Yes, I would recommend this product to a friend or co-worker
I ordered 10, standard shipping, and they arrived the next day! (I'm in eastern MA.) Brand new in original packaging. Solid product; they don't feel cheaply made. It's just been a few months, but all good so far. I had a problem putting credit card info online, so I called up, which I hate to do, but it was soooo easy. That was nice.
