Watts Series LFWDS Lead Free FloodSafe Water Detector Shutoff

Series WDS FloodSafe® Water Detector Shutoff protects the homeowner from catastrophic damage due to the water heater leaking. The FloodSafe® will detect the presence of water on the floor beneath the water heater and will automatically shutoff the water supply and power source to the water heater.

NOTE: The LFWDS is not compatible with the Bradford White™ Icon System™ made by Honeywell®

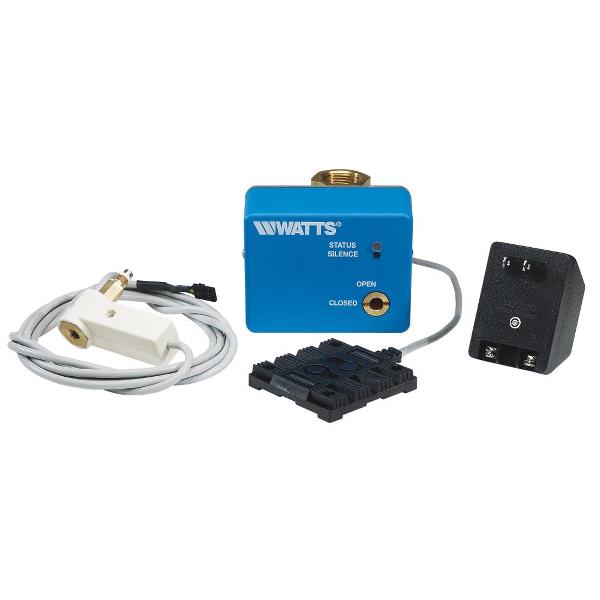

This 0121577 consists of an integral control unit, a water dam, power supply, power cut-out module with standing pilot and left handed thread, and water detection pad. An optional battery back-up maintains normal usage up to 3 days.

Features:

• Testable and Resettable: The FloodSafe® Water Detector Shutoff can be easily reset by the contractor, home or business owner or plumbing inspector to assure proper operation
• Lead Free* cast copper silicon alloy valve body construction
• Employs state-of-the-art water detection technology (no terminals to corrode or to impair operation)
• Provides contacts for monitored alarm detection systems
• Power Cutout Modules for the standing pilot gas fired water heaters retain thermocouple circuit in the event of momentary power outage
• Easily installed on new or existing water heaters – No special piping is required – Supplied with a Water Dam for concrete, linoleum, tile or other hard surface flooring – Sized for 3⁄4" or 1" (20 or 25mm) water supply lines – Secure interlocking connector cables are unique to each connecting device – Powered by a safe low-voltage power supply that plugs into a standard 120 VAC wall outlet and is wired using standard thermostat cable (supplied by installer)
