Watts Series LFDPTG-1 Combination Pressure and Temperature Gauges

Series LFDPTG-1 Combination Pressure and Temperature Gauges are used in commercial, residential, and institutional HVAC applications. These gauges are bottom-entry type models with black enamel steel cases, Kostil Polymer windows, 1/2" NPT connections, copper alloy Bourdon tube pressure elements, and bimetal spiral springs. The LFDPTG-1 features Lead Free* construction to comply with Lead Free* installation requirements. Accuracy is ASME, Type B. The Series LFDPTG-1 gauges are available in various pressure rating scales. The dual pressure scale features PSI and kPa measurements. The dual temperature scale features ºF and ºC measurements.

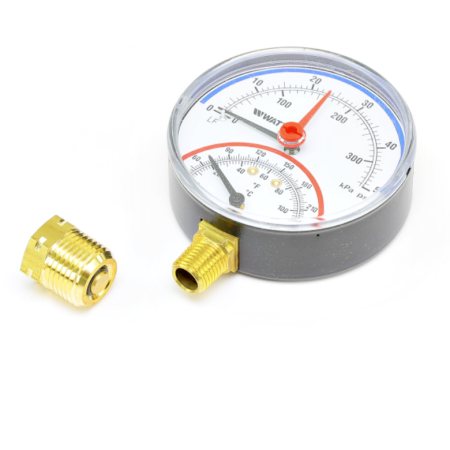

This 0121663 gauge features a 3 inch dial with pressure rating scale from 0 to 50 psi and temperature range 32 to 248 degrees F.

FEATURES:
