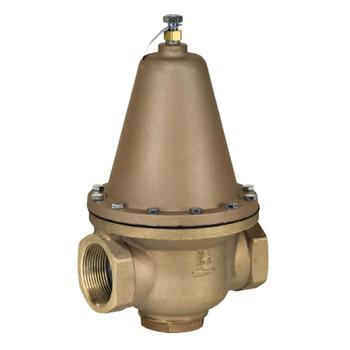

Watts Series LFN223B Super Capacity Water Pressure Reducing Valves

Series LFN223B and LFN223BS Super Capacity Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. The LFN223B/LFN223BS features Lead Free* construction to comply with Lead Free* installation requirements. This series is suitable for water supply pressures up to 300psi (20.7 bar) and may be adjusted from 25 – 75psi (172 – 517 kPa). The standard setting is 50psi (345 kPa). Series LFN223B features an enlarged diaphragm, spring cage and seat orifice for super capacity performance. Series LFN223BS has the same options as the LFN223B, except it is furnished with a Lead Free* strainer. All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.

Features:


• Enlarged diaphragm, spring cage and seat orifice for super capacity performance
• Lead Free* cast copper silicon alloy body construction
• Serviceable in line
• Series LFN223BS furnished with separate Lead Free* strainer
• Standard bypass feature controls thermal expansion pressure
• Sealed spring cage on all models for accessible outdoor or pit installations
