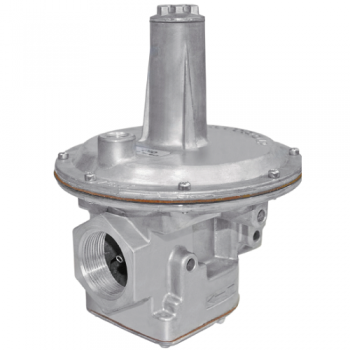

Maxitrol 210DZ-1-1/2 Zero Governor Regulator 1-1/2" NPT

Maxitrol 210DZ-1-1/2 Zero Governor Regulator 1-1/2" NPT
Images for general purposes only. Actual may be different than depicted.
Maxitrol 210DZ-1-1/2 Zero Governor Regulator 1-1/2" NPT

Maxitrol 210DZ-1-1/2 Zero Governor Regulator 1-1/2" NPT

SKU: 210DZ-1 1/2
In Stock 3
Rating:
$407.76 /ea
Qty of 4 - $387.54 /ea
Qty of 8 - $367.31 /ea
0
$0.00
0
$0.00
0

Both the RZ and 210Z series are adaptable for air-gas mixing applications. Because of the balanced valve construction, Z models offer superior performance at an economic price to other types of atmospheric regulators. Maxitrol’s RZ and 210Z Zero Governor model regulators are used for flow control of burners, nozzel mixers, mixing tees and proportional premixers.

Specifications:

  • Pipe Sizes: RZ Models: 3/8” to 1” threaded connections with NPT or ISO7-1 threads. 210Z Models: 1” to 3” threaded connections with NPT or ISO7-1 threads.4” 125 lb. flange (210JZ only).
  • Housing Material: R400Z, R500Z, R600Z, 210DZ, 210EZ, 210GZ, 210JZ: aluminum.
  • Mounting: R400Z, 210DZ, 210EZ, 210GZ, 210JZ mount in an upright position only. R500Z, R600Z suitable for multi-positional mounting. If ball check vent limiting device is installed, mount in an upright position only.
    NOTE: All Maxitrol gas pressure regulators should be installed and operated in accordance with Maxitrol Safety Warning Instructions (see GPR_MI_EN.ES or GPR_CSA_MI_EN.FR)
  • Certifications: R400Z, R500Z, 210DZ, 210EZ, 210GZ: ANSI Z21.18/CSA 6.3 Gas Appliance Pressure Regulators.
  • Gas Types: Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.
  • Maximum Inlet Pressure: CSA Certified: R400Z, R500Z: 1/2 psi (3.4 kPa); 210DZ, 210EZ, 210GZ: 5 psi (34.5 kPa)
  • Maxitrol Tested: R600Z: 1/2 psi (3.4 kPa); 210JZ: 5 psi (34.5)
  • Emergency Exposure Limits: R400Z, R500Z, R600Z: 2 psi (13.8 kPa) 210DZ, 210EZ, 210GZ, 210JZ: 25 psi (172 kPa)
  • Ambient Temperature Ranges: R400Z, R500Z, R600Z: -40° to 205°F (-40° to 96°C) 210DZ, 210EZ, 210GZ, 210JZ: -40° to 200°F (-40° to 93°C)
  • Sensing Taps: 210Z Models have convenient tap locations available for downstream sensing, cross connections, and differential control. Four locations can be tapped and plugged for measuring pressure.
  • Remote Sensing: 210DZ, 210EZ, 210GZ models may be ordered with remote sensing. The internal sensingtube is omitted and external sensing taps are provided. Add suffix letter “R” to model number when ordering.
  • Minimum Regulation: R400Z: Suitable for pilot flow applications. (Circle P) (0.15 CFH NG), (Delta P (0.50 CFH NG). R500Z, R600Z: 10 CFH.

Following are the Attached files for this product:

Maxitrol 210DZ-1-1/2 Product Overview
