Maxitrol R500S-3/4 Balanced Valve Design Gas Regulator 3/4"

Maxitrol R500S-3/4 Balanced Valve Design Gas Regulator 3/4"
Images for general purposes only. Actual may be different than depicted.

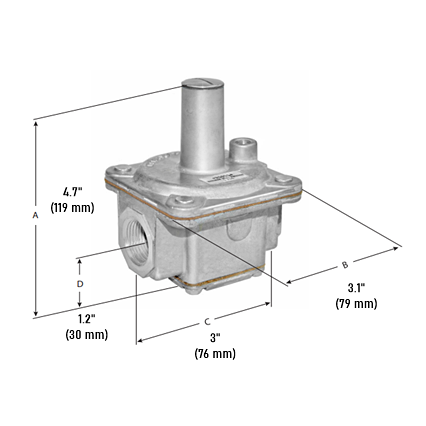

Maxitrol R500S-3/4 Balanced Valve Design Gas Regulator 3/4" Maxitrol R500S Double Diaphragm Balanced Valve Gas Regulator Maxitrol R500S  Gas Regulator 3/4" x 3/4" Maxitrol R500S Gas Regulator Dimensions

Maxitrol R500S-3/4 Balanced Valve Design Gas Regulator 3/4"

SKU: R500S-3/4
UPC: 6854120030
Rating: (1)
Quantity Price Stock
16
16
$86.28     /ea
16

Buy in Bulk & Save

Quantity Price
15 - 24 $81.97 /ea
25+ $77.66 /ea
0
$0.00
0
$0.00
0
R500S-3/4

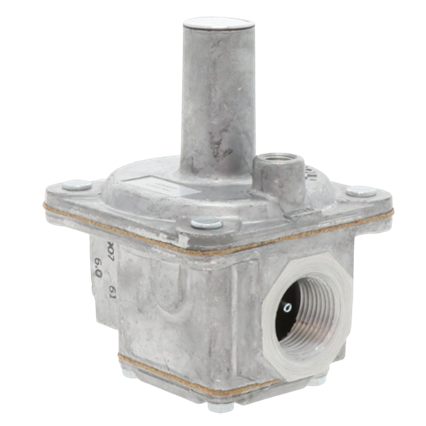

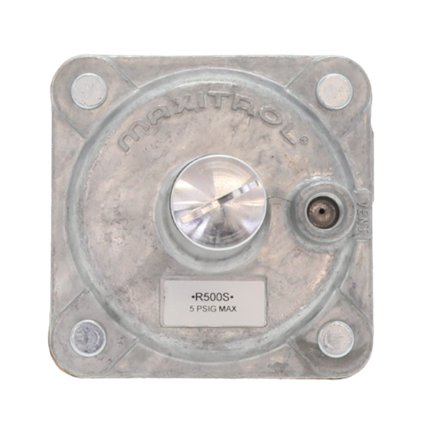

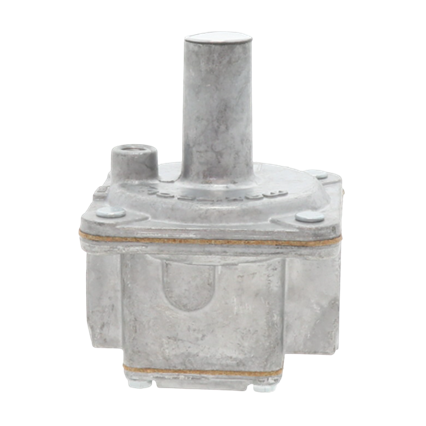

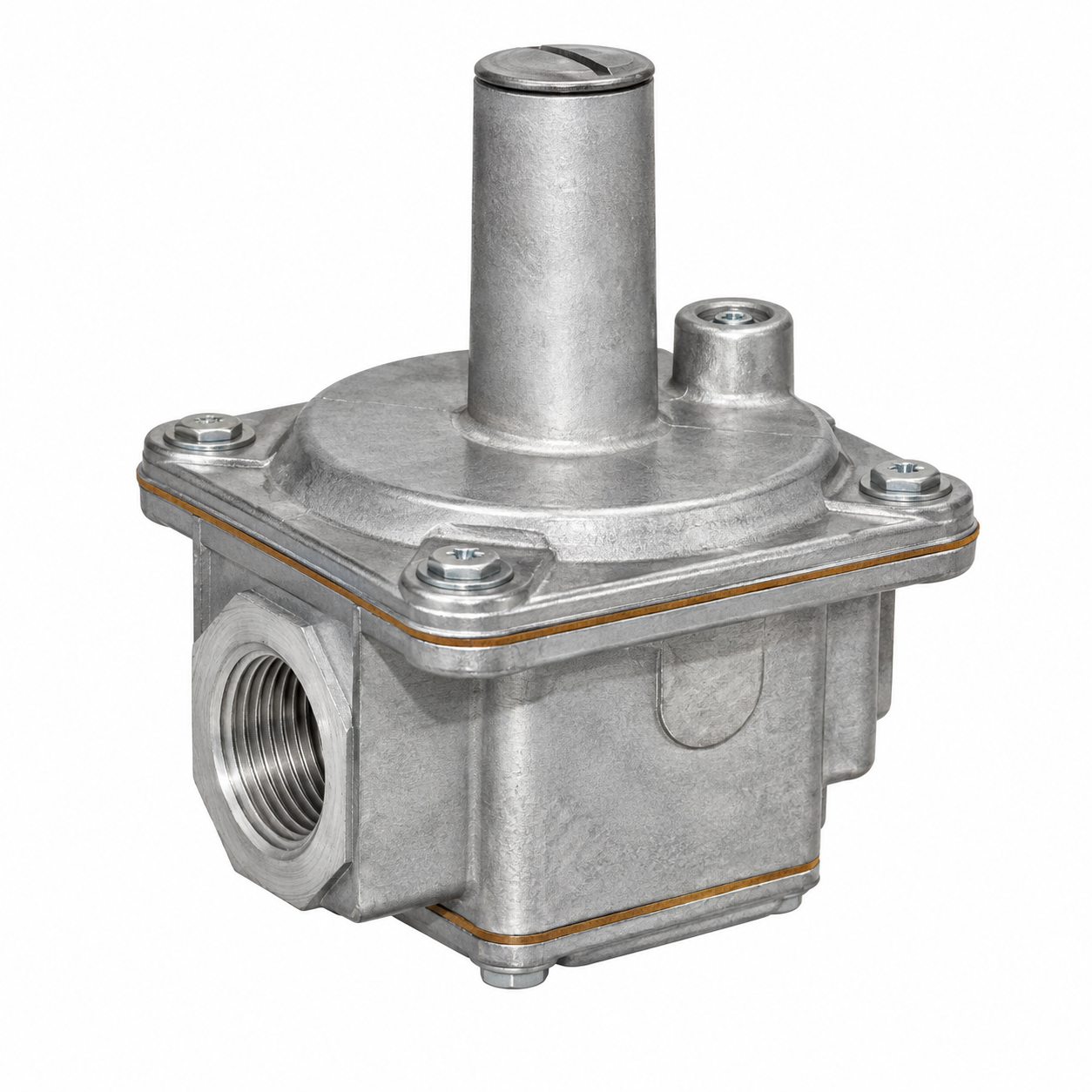

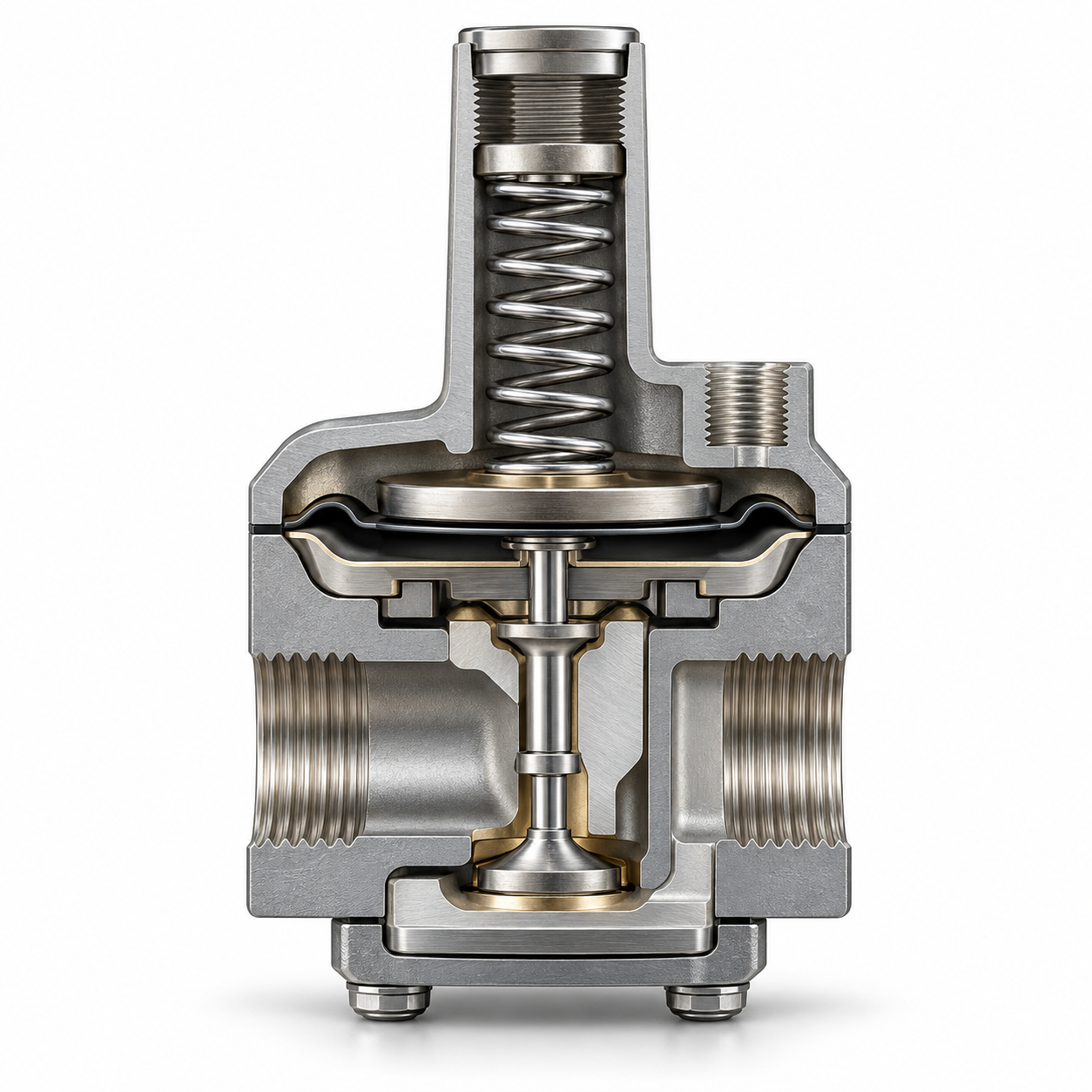

The Maxitrol R500S-3/4 is a double diaphragm balanced valve gas regulator with a 3/4" threaded connection and 1/8" NPT vent connection.  Its maximum allowable inlet pressure is up to 5 PSI.  Uses a spring to set outlet pressure, ranging from 3" to 6" W.C.

The R/RS Gas Regulators are designed for use to control or set a stable outlet pressure on burners and pilot load applications.  Ideal for appliances like heaters and boilers that use natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.

This type of valve regulator can be mounted in any position.  If a ball check vent limiting device were installed, mount the regulator in an upright position.

R500S Valve Regulator Capacities and Pressure Drop:

Model

Size

Pressure Drop - inches w.c. (kPa)
0.2
(0.05)
0.4
(0.10)
0.6
(0.15)
0.8
(0.20)
1.0
(0.25)
1.5
(0.37)
2.0
(0.50)
2.5
(0.62)
3.0
(0.75)
3.5
(0.87)
4.0
(1.0)
R500S 3/4" x 3/4" 196 (5.5) 277 (7.8) 340 (9.5) 392 (11.0) 438 (12.3) 537 (15.0) 620 (17.4) 693 (19.4) 760 (21.3) 820 (23.0) 876 (24.53)
 Note: Capacities expressed in CFH (m3 /h) @ 0.64 sp gr gas




Pipe Size 3/4"
Vent Connection 1/8" NPT
Ambient Temperature Ranges -40 to 205°F (-40 to 96°C)
Swing Radius 3.6" (90 mm)
Approval CSA
