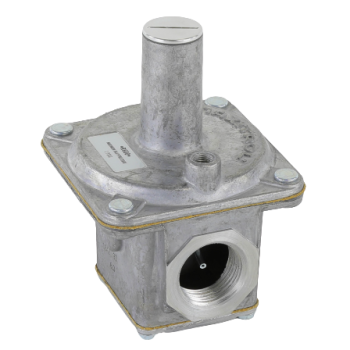

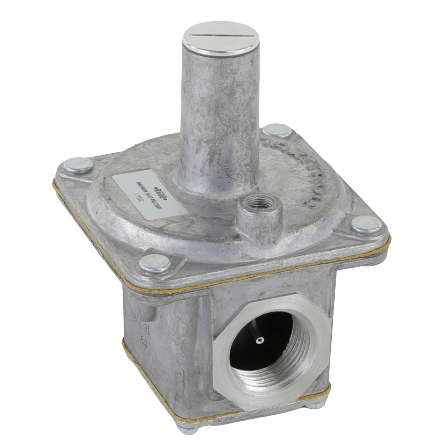

Maxitrol R600-1 Balanced Valve Design Gas Regulator 1"

Maxitrol R600-1 Balanced Valve Design Gas Regulator 1"
Images for general purposes only. Actual may be different than depicted.

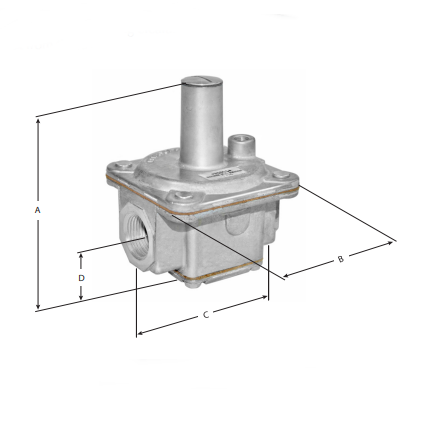

Maxitrol R600-1 Balanced Valve Design Gas Regulator 1" Maxitrol R600-1 Balanced Valve Design 1" x 1" Gas Regulator Dimension Reference

Maxitrol R600-1 Balanced Valve Design Gas Regulator 1"

SKU: R600-1
In Stock 20
Rating: (1)
$105.84 /ea
Qty of 6 - $100.59 /ea
Qty of 12 - $95.33 /ea
0
$0.00
0
$0.00
0

Maxitrol R600-1 is a Balanced Valve Design Gas Regulator with side to side 1-inch pipe connection. The valve's vent NPT connection measures 1/8-inch and has a swing radius of 4.3-inch.

The Maxitrol  R & RS Series Gas Regulator is designed for use with both main burner and pilot load applications. They can provide an exceptional capacity range and can uphold a steady outlet pressure control with widely varying inlet pressures by its balanced valve design.  R & RS series regulators are compatible with infrared heaters and heater/boiler pilot lines in large industries.


Features:

  • Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures
  • Physically small but exceptional capacity range
  • Compatible with infrared heaters and pilot lines



Model No. Pipe Size Vent Connection Swing Radius (inch) Dimensions (inch)
R600-1 1" x 1" 1/8" NPT 4.3 A B C D
5.7 3.9 4 1.5




CAPACITIES AND PRESSURE DROP: Capacities expressed in CFH (m3 /h) @ 0.64 sp gr gas

Model No. Pressure Drop - inches w.c (kPa)
R600-1 0.2
(0.05)
0.4
(0.10)
0.6
0.15)(
0.8
(0.20)
1.0
(0.25)
1.5
(0.37)
2.0
(0.50)
2.5
(0.62)
3.0
(0.75)
3.5
(0.87)
4.0
(1.0)
330
(9.2)
468
(13.1)
572
(16.2)
661
(18.2)
739
(20.7)
906
(25.4)
1046
(29.3)
1169
(32.7)
1280
(35.8)
1380
(38.64)
1480
(41.44)
Pipe Size 1 x 1 inch Threaded
Vent Size 1/8 inch
Vent Connection Type NPT
Swing Radius 4.3 inch
Housing Material Aluminum

Following are the Attached files for this product:

Maxitrol R/RS Series Balanced Valve Design Gas Regulator Technical Datasheet

By Ron

from Centennial CO

Yes, I would recommend this product to a friend or co-worker

5.0 Exactly what I ordered!

Exactly as ordered!

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Please confirm price and delivery date of 2 Maxitrol R600S. 1" , 1 psi with 5-12"wc spring. I appreciate your prompt reply. Thanks. F.Vargas
Asked on Jul 28, 2017 by FLORENCIO from Monterry, N.L. Mexico
1 Answers

Have an answer? Click Here

A:
Price and stock availability our listed on the product detail page. The current price for this regulator is $94.94 and we have 4 in stock at the moment. Delivery time is based upon your choice of shipping option which you can find in our FAQ or Shipping Info page.
Replied on Jul 28, 2017 by Ron from Industrial Stores
