Watts 0794151 Repair Kit

Watts 0794151 Repair Kit
Images for general purposes only. Actual may be different than depicted.
Watts 0794151 Repair Kit Watts 0794151 Repair Kit for Series 909 and LF909 Reduced Pressure Zone Assemblies

Watts 0794151 Repair Kit

SKU: 0794151
UPC: 098268507027
Quantity Price Stock
Usually Ships 2 - 4 Weeks
$1,133.68     /ea

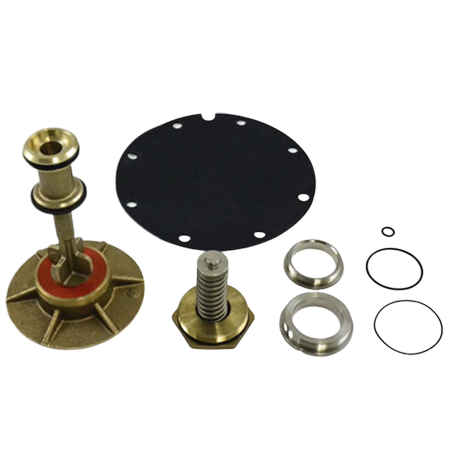

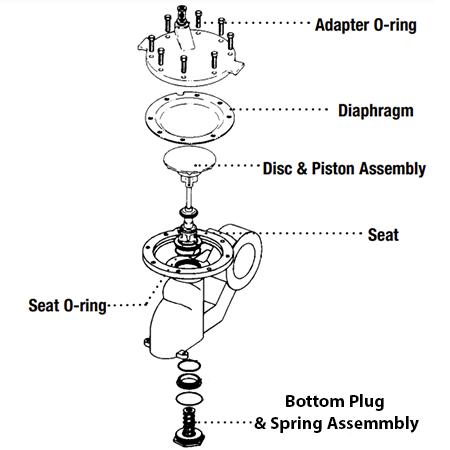

The 0794151 is a repair kit that consists of a diaphragm, seat, seat O-ring, adapter O-ring, lubricant, disc, piston assembly, bottom plug, and spring assembly.

The total relief valve kit is suitable for series 909 and LF909 with sizes 4" to 10" reduced pressure zone assemblies.  The kit is used for servicing the backflow preventer relief valve.

The 0794151 directly replaces part numbers 0887238, 0887236, and 0794086.

Sizes 4" to 10"

Q & A: Ask the Questions, share answers

Do you have questions about this product?

You do not list that it comes with the bottom plug and spring assembly but it shows it in the picture. So I need to know if it does indeed come with the pug and spring.
Asked on Jul 16, 2018 by Dennis from WI
1 Answers

Have an answer? Click Here

All the relief valve kits in this series for valves that rebuild 4" to 10" valves (including the 0794151) include bottom plug and spring assembly.
Replied on Jul 16, 2018 by Ron from Industrial Stores
